Mode Converters

General Atomics has extensive design expertise in mode converters. Examples of mode converters we have provided are:

  • TE01 to HE11 mode converters:
    • 31.75 mm waveguide (28 GHz)
    • 17.3 mm waveguide (60 GHz)
    • 20.3 mm waveguide (92-100 GHz)

  • TE02 to TE01 mode converters in 31.8 mm waveguide for 28 GHz

  • TE11 to TE13 mode converters in 16 mm waveguide for 94 GHz

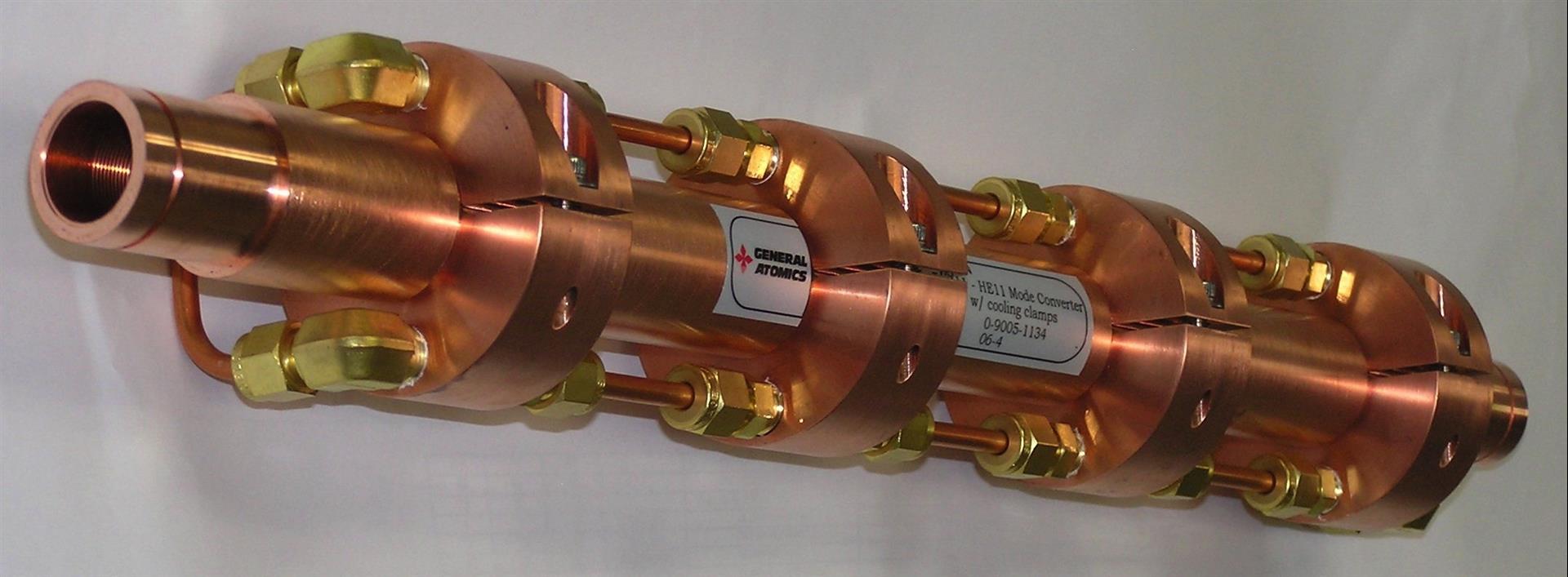

Cooled TE 01 -TM 11  mode converter in 20.3-mm smooth waveguide for 92-100 GHz.
Cooled TE 01 -TM 11 mode converter in 20.3-mm smooth waveguide for 92-100 GHz.

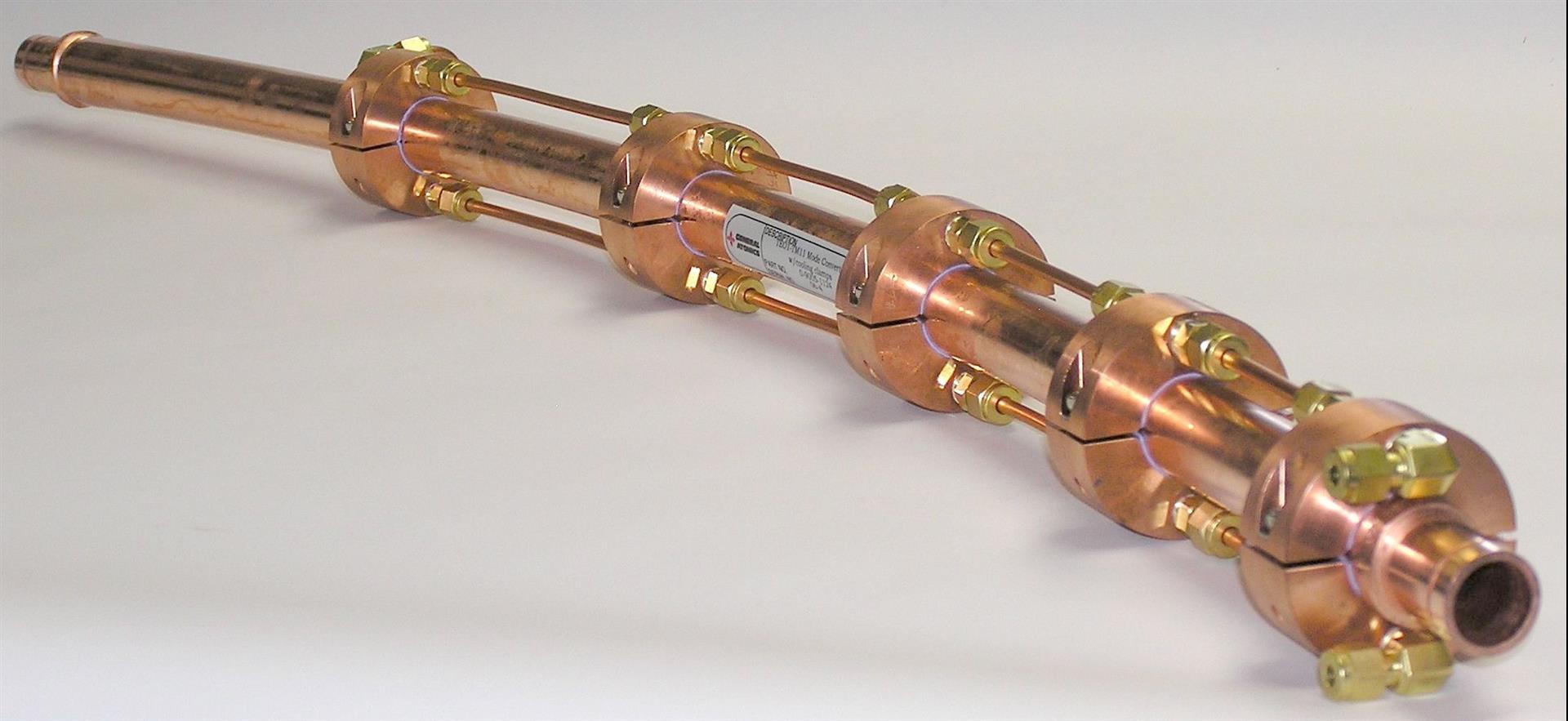

Cooled TM 01  to HE 11  mode converter in 20.3-mm corrugated waveguide for 92-100 GHz.
Cooled TM 01 to HE 11 mode converter in 20.3-mm corrugated waveguide for 92-100 GHz.
