Diameter Tapers

Tapers are designed for a mode conversion of 0.1% or less over either narrow or broad bands. Narrow-band tapers are specially designed for minimum length.

Many other similar tapers have been made for narrowband and broadband applications. For example, a 2-meter long 31.75 to 63.5 mm waveguide taper in corrugated waveguide was made for under 0.1% mode conversion from 100 to 180 GHz.

(Click images to see entire photo)

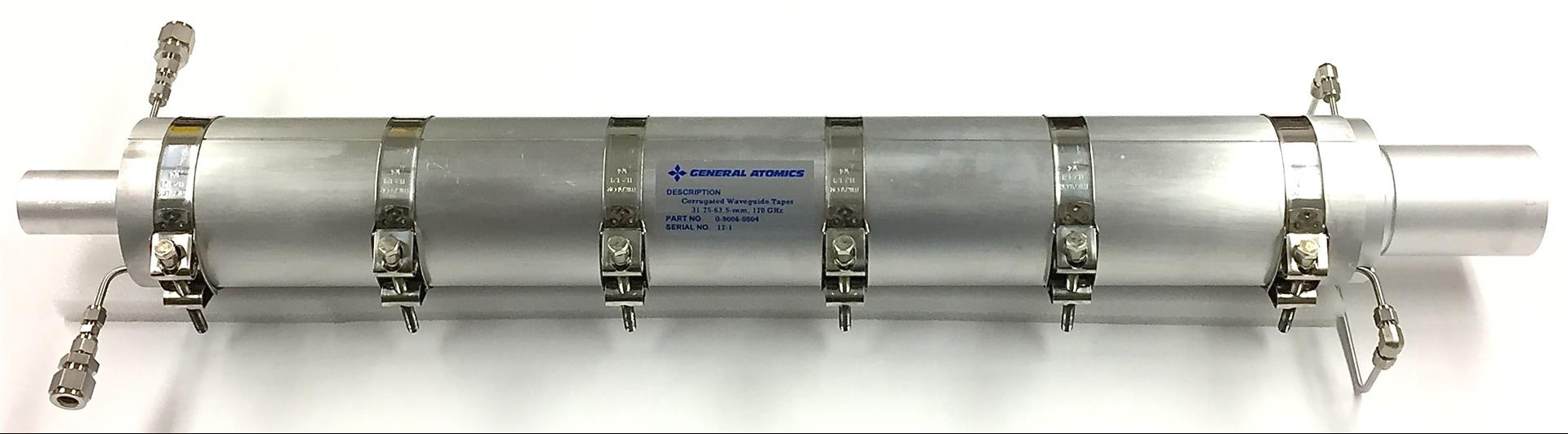

Cooled corrugated waveguide 31.75 to 63.5-mm taper for 170 GHz
Cooled corrugated waveguide 31.75 to 63.5-mm taper for 170 GHz

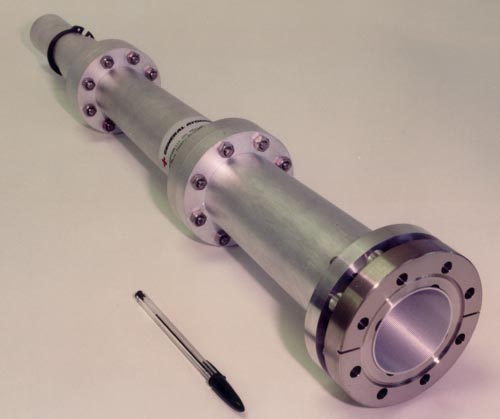

110 GHz, 31.75 to 60.3 mm diameter taper in corrugated waveguide, with CF flange on large end and machining for standard waveguide coupling on small end
110 GHz, 31.75 to 60.3 mm diameter taper in corrugated waveguide, with CF flange on large end and machining for standard waveguide coupling on small end

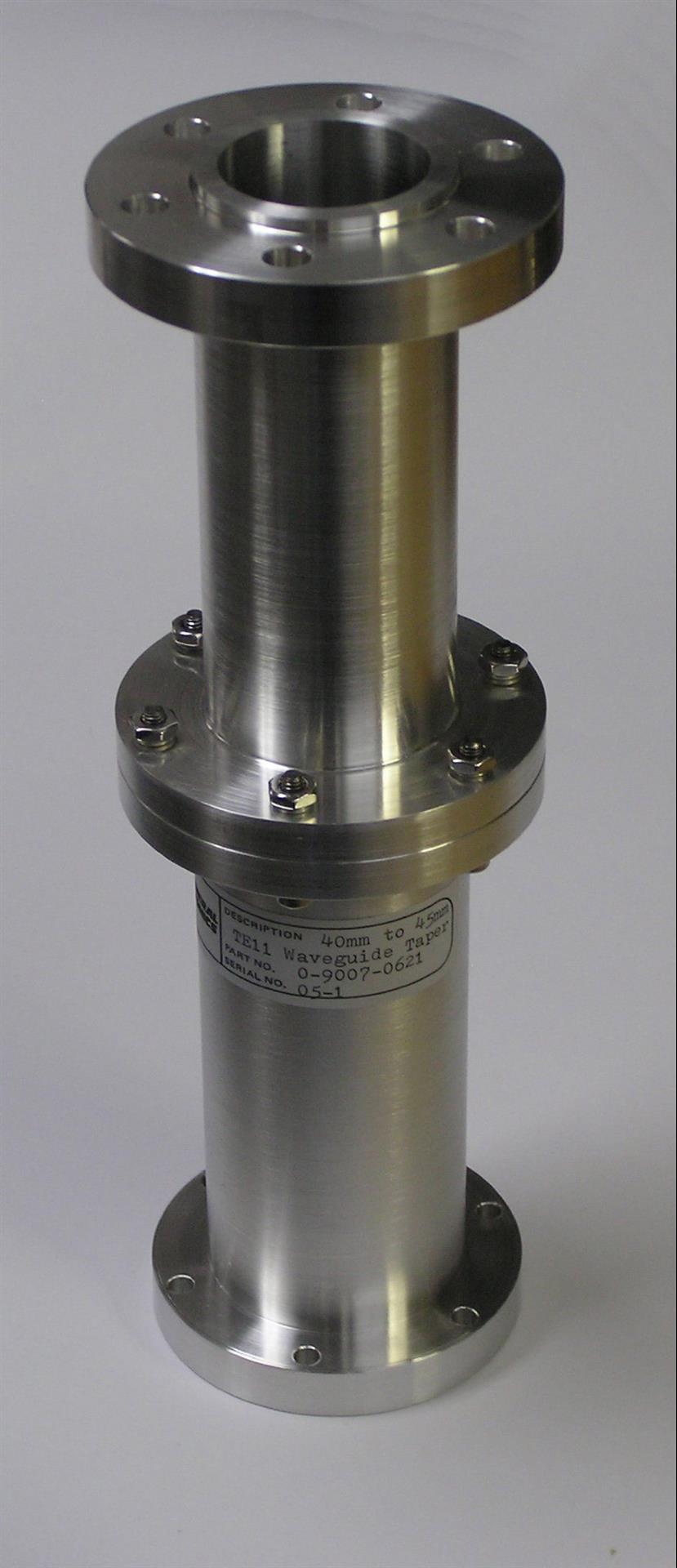

TE 11  taper in smooth waveguide.
TE 11 taper in smooth waveguide.
