Continuous Curvature Bends

When the ratio of waveguide diameter to wavelength is not too large, bends can be negotiated with low loss in continuous bends with special curvature. Some examples:

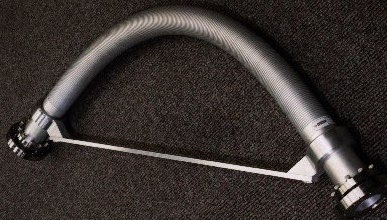

High power 90° continuous curvature bend
High power 90° continuous curvature bend in 44.5 mm waveguide for HE 11 mode at 28 GHz

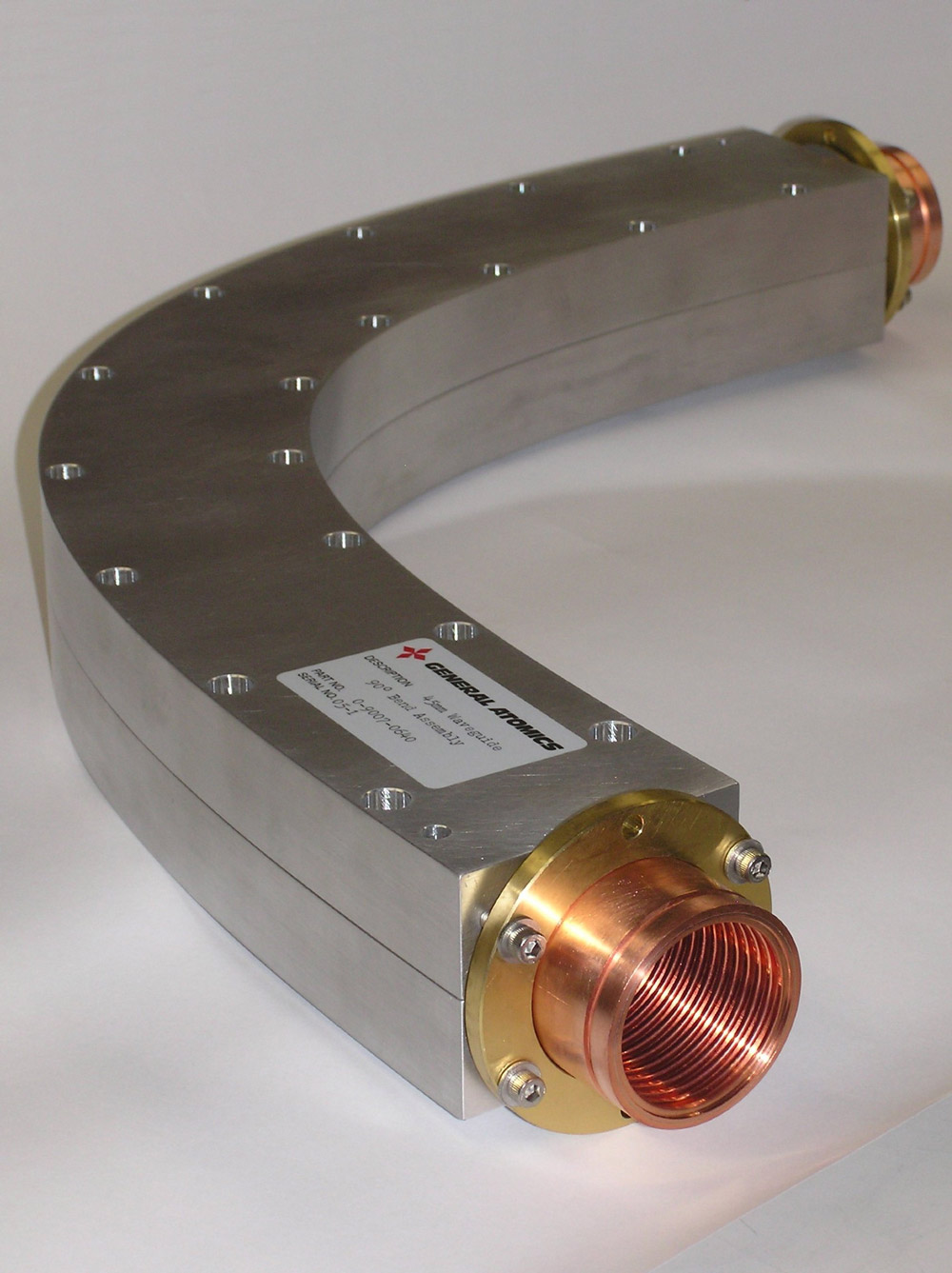

High power 90˚ continuous curvature bend
High power 90˚ continuous curvature bend in 44.5 mm waveguide for TE 01 mode at 11.4 GHz
High power 30˚ continuous curvature bends
High power 30˚ continuous curvature bends in 31.75 mm waveguide for HE 11 mode at 110 GHz
